Chassis Trailer

2 / 3 Axles container chassis trailer The 2/3 Axles container chassis trailer is specially designed to carry vaious cargo containers.You can choose to use you chassis trailer transport one 20 inch ,40inch or 45 inch container or two 20 inch containers at one time.The only difference that your...

Inquiry

  • Product Details

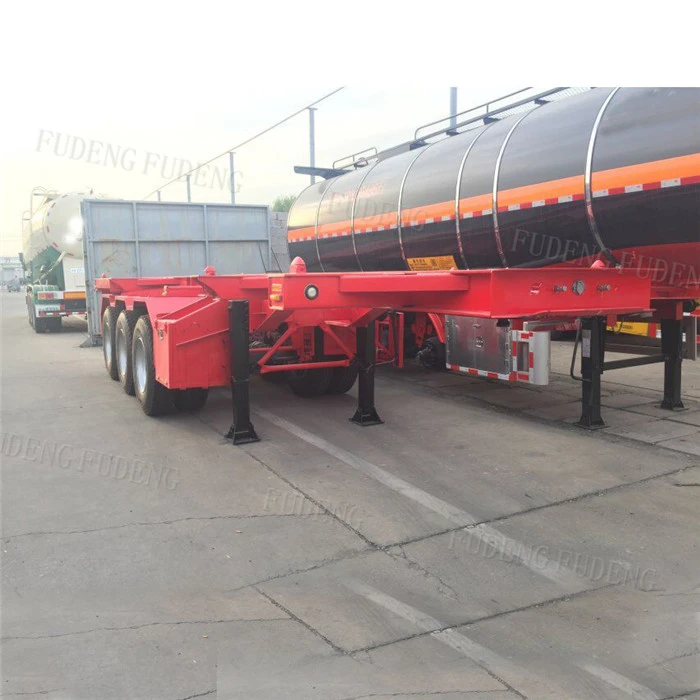

2 / 3 Axles container chassis trailer
   The 2/3 Axles container chassis trailer is specially designed to carry vaious cargo containers.You can choose to use you chassis trailer transport one 20 inch ,40inch or 45 inch container or two 20 inch containers at one time.The only difference that your choice makes is the number of locks required for specific transportation appplications.

3 Axles 20ft chassis trailers


2 Axles 40ft chassis trailers


Our Service-chassis trailer
  1). Traning of chassi trailer operating and normal maintenance .
  2). Regularly callback to know the vehicle's working status.
  3). Supply the service of regular repair.
  4). Solve the customer’s advisory.
  5). The overseas engineers are always ready to deal with unexpected needs.
  6). 24 hours hotline.
  7). CKD and SKD are available.
  8). Faster, better and more professional

Specification-chassis trailer

Height of the beam is 500 mm, upper plate 16mm,down plate 18mm, middle plate 10mm.

Overall dimension

12500X2500X1550mm

Load capacity

50Ton

Axles

FUWA brand, 3units, 13Ton capacity

Tyres

12.00R22.5, 12units Triangle Brand

Rims

9.0-20, 12units,

Kingpin

2 Inch Or 3.5 Inch

Landing gear

28T, double speed operation

Brake

Dual Line braking system

Electric

24V,7 pin socket,One set 6-core standard Cable

Lights

Rear electrical lighting, brake lights, indicators, fog lights and reversing light

Painting

Sand blasting before painting. One coat of primer, anti corrosion. Two coats of finish painting.  Color advised by customer

Packing

Polish with wax
