Container Trailer Chassis

Carries one 20' or 40' ISO container or two empty 20' ISO containers.

InquiryChat Now

  • Product Details

Features:

High strength steel: For material of web plate and key position, it uses high strength low alloy steel.
Strong loading capacity: By using high strength steel and structural innovation, it keeps same loading capacity while reducing tare weight to make sure the loading is within the limit of government required, and at the same time, it reduced the oil consumption and tire wearing.
Custermised producing: dimensions, tare weight and loading capacity, wheel carrier, bumper, fender , tool box etc. can be designed and manufactured according to clients requirements.

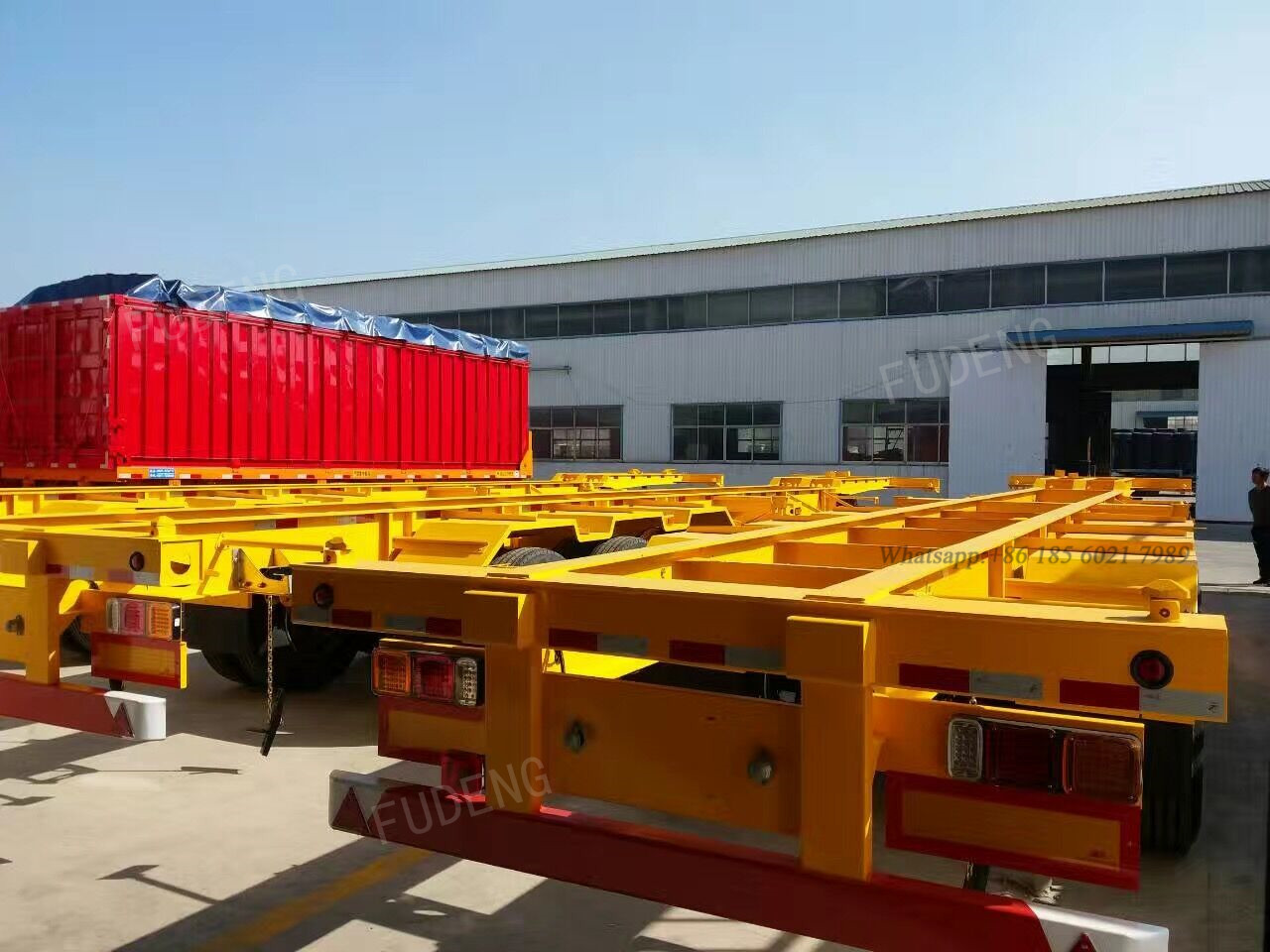

40ft container trailer chassis with high quality

Container trailer chassis

12pcs twist locks

Container trailer chassis.jpg

Ready for shipment to the port

Container trailer chassis


Specification

Dimension

12.5m×2.5m×1.55m (Outside)

Payload

40T

Tare weight

About  7.5T

Twist lock

12 units

Chassis

Main beam

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.

Frame Beam

Top Flange 14mm,width 140mm; Middle

Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm

Frame Floor

The Thickness is 3mm pattern

Axle

3 axles, 13T FUWA brand , 16ton brake pads

Landing Gear

28T lifting capacity with two speed

King Pin

2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension

Leaf Spring

90mm(W)*16mm(T)*10 Layer

Pneumatic Braking System

Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve

Tire

12R22.5*12pcs

Accessories

One standard tool box

Spare tire rack

One

Electrical system

24 volt electrical system.7 pin electrical connector. Parking stop,reverse,number plate and indicator lights. rear lights , rear front and side reflectors
