Description

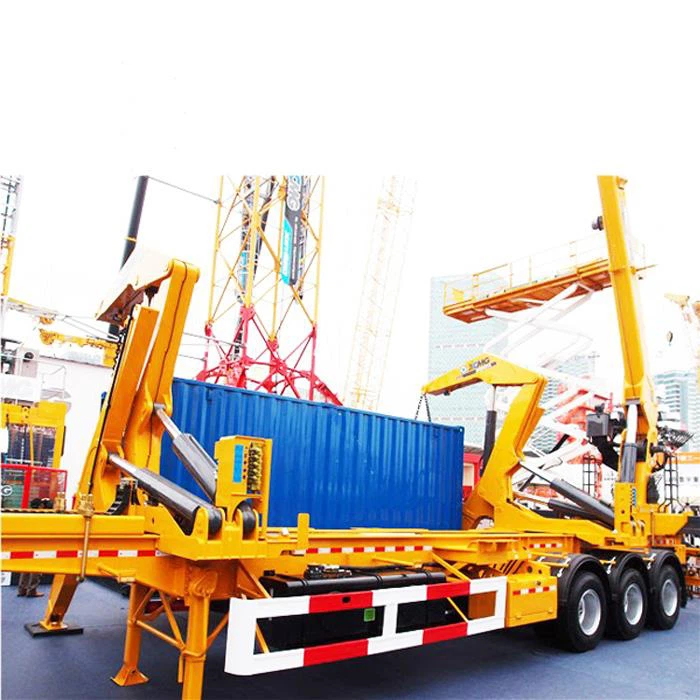

Box Side Lifter Trailer
FUDENG professinoal engineering team will be ready to provide you with a set of well-integrated solutions that meets your transportation needs and your local regulartions. Our engineering team can communicate with you online to fully understand your needs, the solutions include the product design, product material, product drawings, product videos.
Designed for
● Tough working environments where superior strength is important
● Heavy duty use and heavy lifting requirements
● Quicker, more efficient lifting of containers
● Safe and ease of operation by less experienced users
| Specification | |
Cranes | |
Type | Side Lifting RH Std or LH Std |
Max. Lift capacity | 37000kg |
Max. working range | 4000 mm |
Max. stabilizer outreach | 3200 mm |
Design Standard | GB/T 3811-2008 |
Container type | 40 foot |
Material | High Tensile Steel |
Optimum Gap Trailer to Container | 400 mm |
Maximum Gap Trailer to Container | 1500 mm |
Hydraulic System | |
Hydraulic Direction Control Valves | RADK-TECH SHANGHAI |
Max. pressure of hydraulic system | 28 MPa |
Electrical Control System | |
Remote Control | NBB Germany |
Voltage | 12V |
Others | |
Cable carrier | IGUS |
PUMP |
|
Pump to link truck and crane | XP80 Hydro Leduc France XP80 |
Sinotruk Truck Chassis | Optional |
More information , please check link on YouTunbe:
