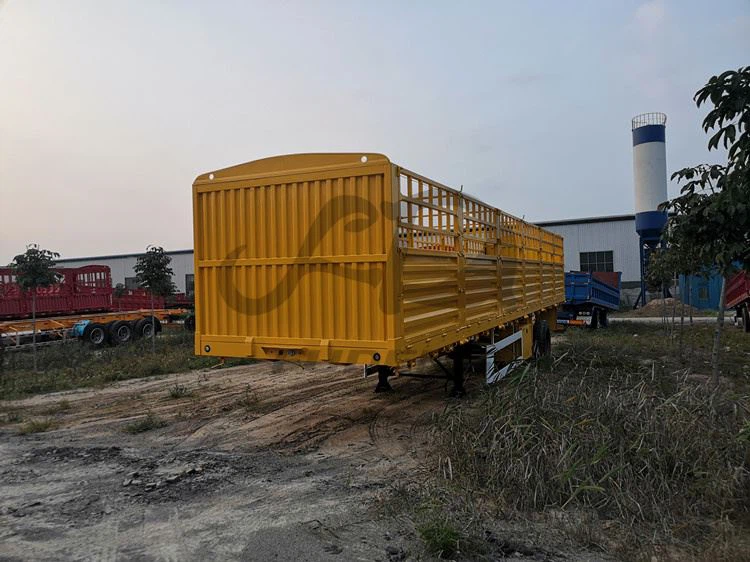

60 Ton Fence Cargo Trailer
3 axle 60 ton fence semi trailer mainly used for transportation of agricultural and sideline products and other bulk cargo.
Description
Product Description：
Fence cargo trailer was popular by logistics companies as its multipurpose application.It uses to load a wide range of products and materials, like sand, bags, poultry, etc. Also some bulk cargo, very widely used in the transportation industry.
Fence flatbed trailer can be used to load the containers after adopt the container locks for it.
TITAN production the sidewall trailer fence semi trailer adopts high-quality material, important accessories and configuration all adopt domestic and aboard brands.
Main beam adopts Q345 high strength steel, stability and safety when operating in harsh road conditions. This makes the product long service time, save maintenance costs and improve operating efficiency.
| Specifications | |
| Dimension | 12.5m×2.5m×1.65m (Outside) Or customized |
| Payload | 60T or customized |
| Tare weight | About 7.5T |
| Twist lock | 12 units THT Type |
| Main beam | Q345B carbon steel “I” beam |
| Frame Floor | The thickness is 3mm pattern or customized |
| Axle | 3 axles, 13tons BPW/FUWA/F1 brand or 14tons Jinsheng |
| Landing Gear | JOST brand 28T lifting capacity Or Optional |
| King Pin | 2.0 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension Or Air suspension |
| Leaf Spring | 90mm(W)*16mm(T)*10Layer thicken type |
| Tire | 12R22.5, 13R22.5, 11.00R20, 12.00R20, 315/80R22.5, 385/65R22.5 optional |
| Accessories | one standard tool box |
| Color | Optional |
